[Arnold] Loading plugins when you edit ASS files

Posted on by
Reply

If you’re using the Arnold API to update ASS files (for example, to change paths), you need to load all the plugins (aka shaders) that are referenced by the ASS file. Otherwise, the unknown nodes are skipped on load, and therefore won’t be in any ASS file you write.

For example, if you set ARNOLD_PLUGIN_PATH to point to the locations of the MtoA shaders and any custom shaders you use, then you could do something like this:

from arnold import *
import os

AiBegin()
AiMsgSetConsoleFlags(AI_LOG_ALL)
AiLoadPlugins( os.getenv( 'ARNOLD_PLUGIN_PATH' ) )
AiASSLoad("original.1001.ass", AI_NODE_ALL)

#
# Do your edits here
#

AiASSWrite("edited.1001.ass", AI_NODE_ALL, False)
AiEnd()

[MtoA] [Scripting] Setting the output image format

Posted on by
1

Settings like the image format and compression come from the defaultArnoldDriver node, so to set them through scripting, you need to set defaultArnoldDriver attributes.

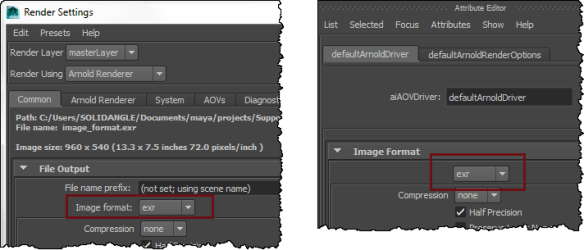

ImageFormat_ai_translator

The image format corresponds to the ai_translator attribute.

# Python
import maya.cmds as cmds
cmds.setAttr( 'defaultArnoldDriver.ai_translator', 'exr', type='string' )

# PyMel
import pymel.core as pm
d = pm.PyNode( 'defaultArnoldDriver' )
d.ai_translator.set( 'exr )

// Mel
setAttr "defaultArnoldDriver.ai_translator" -type "string" "jpeg";

The rest of the attributes are named a little… better 😉 Here’s a Python snippet to list the driver attributes and their values:



from maya.cmds import *
sn = cmds.attributeInfo( inherited=False, short=True, type="aiAOVDriver" )
for s in sn:
    print "defaultArnoldDriver.%s = %s" %( s, cmds.getAttr( "defaultArnoldDriver.%s" % s ) )

[SItoA] Getting user parameters in the render tree

Posted on by
1

Arnold nodes can have user-defined parameters, like MyColor in this ASS snippet:

polymesh
{
 name grid3.SItoA.1000
#
# ...
#
 declare MyColor constant RGBA
 MyColor 0.703999996 0 0.526000023 1
}

In Softimage, there are a number of ways you can assign data like MyColor to a polygon mesh. You could use ICE:

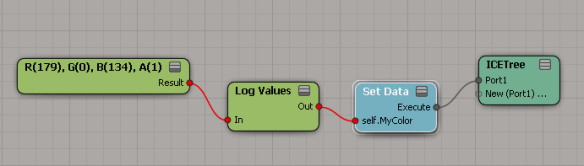

userparam_ice_attribute
Or you could use the Arnold User Options property:

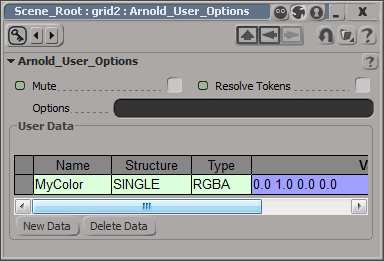

userparam_user_options
To access MyColor in the render tree, use the Color Attribute shader:

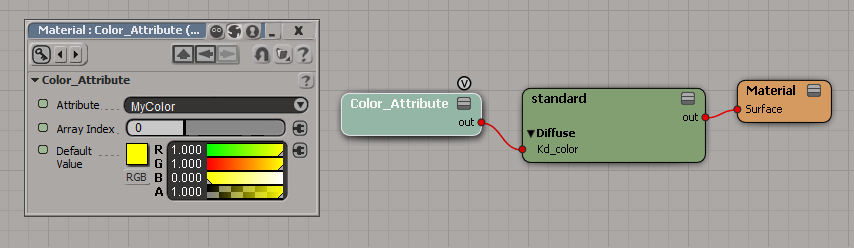

MyColor_render_tree
If you used ICE, MyColor will appear automatically in the Attribute list. But if you used the User Options property, you’ll have to use a script one-liner to set the Attribute value. That’s because Softimage doesn’t know about the user parameters on Arnold nodes: those come into existence only when SItoA translates the scene to Arnold.

Application.SetValue("Sources.Materials.DefaultLib.Material.Color_Attribute.attribute", "MyColor", "")

On a related note, the MtoA shader userDataColor does the same thing as the SItoA Color Attribute shader: it uses AiUDataGetRGBA() to get a color from a user parameter on the object being shaded. With SItoA 3.0, the Arnold > DLL Shaders menu makes it pretty easy to use an MtoA shader in Softimage.

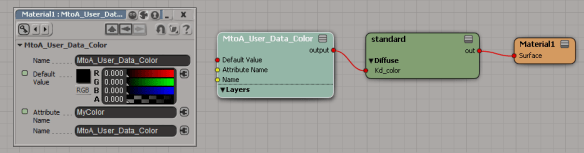

mtoa_userDataColor

[SItoA] More about particle shapes

Posted on by
Reply

For the Point, and Sphere particles shapes, you get a single Arnold points node. For example, for the Sphere shape, you’d get a points node that looked something like this:

points
{
 name pointcloud.SItoA.Sphere.5000
 points 54 1 b85POINT
8LLwt8;`)381]^28S`W`8:l)EadWuf8[iB>89m7taW>aAaX=rn8...
 radius 54 1 b85FLOAT
!8Fcb9$$$$Z
 mode "sphere"
 visibility 255
 sidedness 255
 matrix
 1 0 0 0
 0 1 0 0
 0 0 1 0
 0 0 0 1
 shader "Sources.Materials.DefaultLib.Material.standard.SItoA.5000.2.sta_shading_group"
 id 832
}

This particular node is for 54 points in sphere mode. For each point, you get the center position (the points.points parameter) and a radius (the points.radius parameter). If there’s any scaling applied to the particle in ICE, the radius is multiplied by the X scaling of the particle.

For the Point shape, you get an Arnold points node in “disk” mode, with radius = size * X scaling.

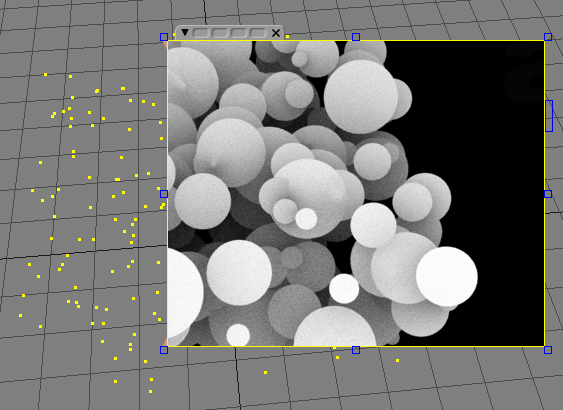

points_disc_mode

For the other supported shapes, you get the corresponding Arnold shape.

[SItoA] Arnold, ICE, and Shapes

Posted on by
Reply

particle_shape
SItoA translates ICE particle shapes to native Arnold shapes. The supported particle shapes are already documented here, but here’s a little more information about how they are translated.

ICE Shape Arnold Shape
Point points (mode “disk”)
Disc disk
Rectangle box (with 0 height)
Box box
Sphere points (mode “sphere”)
Cylinder cylinder
Cone cone
Instance Shape ginstance

The Segment, Capsule, and Blob shapes are not supported. SItoA skips them and they are not translated into the Arnold scene source.

[kick] Combining ASS files on the command line

Posted on by
Reply

One way to avoid exporting the same static geometry for every frame is to export it just once, and then export the rest of the scene (the cameras, lights, and any animated objects) as a regular sequence. kick can combine multiple ASS files and then render the result. For example:

kick environment.ass lights.ass character.0001.ass camera.0001.ass -o scene.0001.exr
  • environment.ass is all the static geometry and the applied shaders.
  • camera.####.ass is the camera, driver, filter, and options.
  • character.####.ass is an animated character with its shaders.

[MtoA] Installing custom shaders

Posted on by
6

So, you’ve downloaded some custom shaders and you want to get them into Maya? Here’s how:

  • Set ARNOLD_PLUGIN_PATH to point to the location of the shader DLL/SO and MTD files.
  • Set MTOA_TEMPLATES_PATH to point to the location of the shader template .PY files.

That’s it. MtoA uses those environment variables to find the shaders (the .DLL or .SO files), the shader metadata files (.MTD), and the shader templates (.PY).

A metadata file tells Maya how to handle the shader (for example, where to show it in the Assign New Materials window).
A shader template defines the UI for the shader in the Attribute Editor.
