WARNING | unable to load dynamic library .\ai_renderview.dll: The specified module could not be found.


kick checks the current working directory for plugins (shaders and procedurals). That means kick tries to load all .dll/.so/.dylib files in the current directory.

So if you do this:

cd C:\solidangle\mtoadeploy\2017\bin
kick -nodes

Then you’ll get a warning like this (plus a pop-up System Error dialog that says “Qt5Core.dll is missing from your computer”).

loading plugins from .
WARNING | unable to load dynamic library .\ai_renderview.dll: The specified module could not be found.

On OSX, the warning would  say ./libai_renderview.so, and on Linux, ./libai.so

Notice the “loading plugins from .” The single period, or dot, represents the current directory.

The solution? Don’t run kick in the MtoA bin folder. Don’t run kick in an any folder where there are non-plugin libraries.

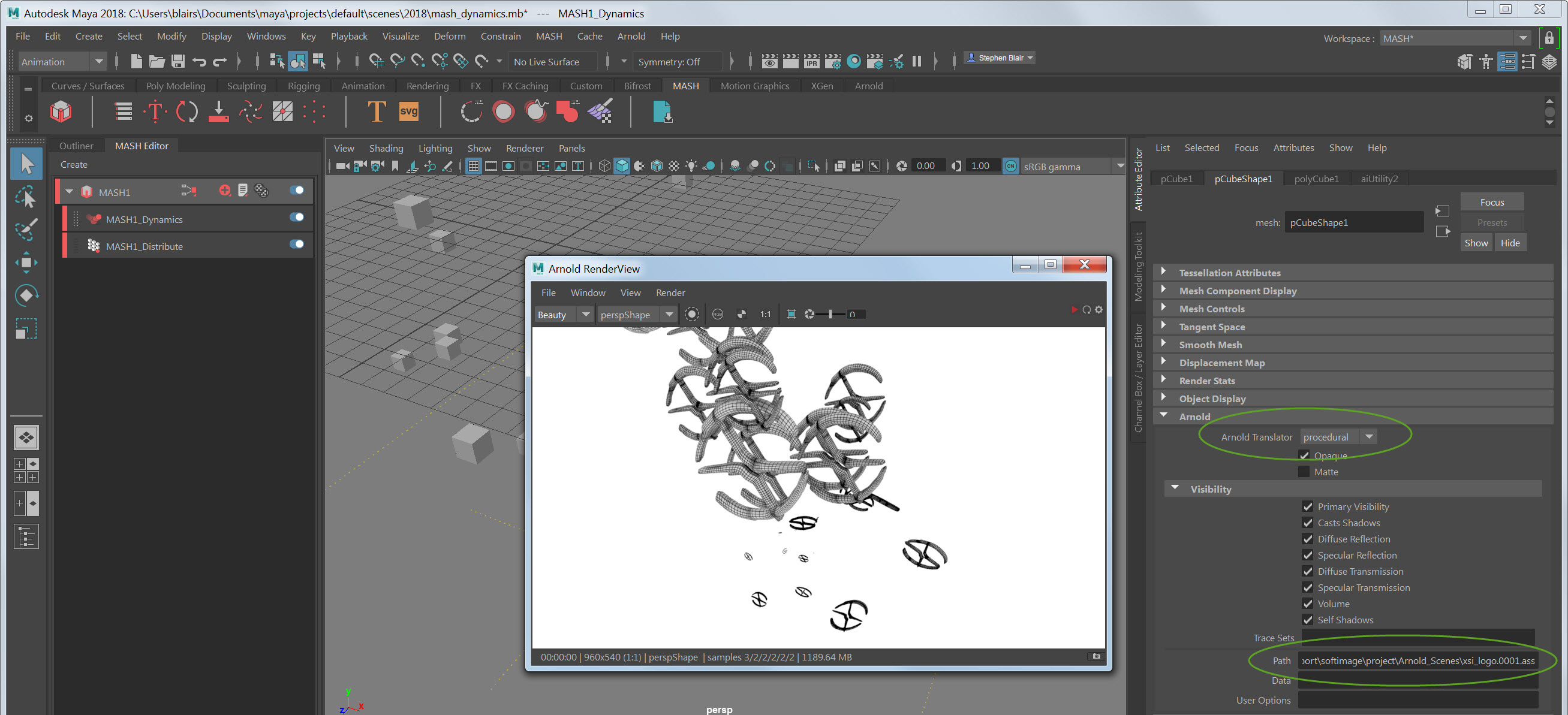

[MtoA] Using standins with MASH dynamics


mash_dynamics_w_standin

Here’s a way to use standins with MASH dynamics:¬†instance a low-poly mesh that has its Arnold Translator set to procedural.

  • Use a low-poly primitive as a proxy for the standin

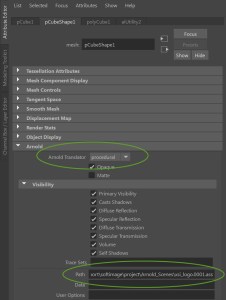

  • In the low-poly primitive Attribute Editor, set Arnold Translator to procedural, and enter the path to the ASS file in the Path box.

arnold_translator_procedural

  • Instance that proxy object with MASH, and apply MASH dynamics
