[MtoA] Error: defaultArnold Driver can’t create file

Posted on by
Reply

You’ll get an error like this if your project path has characters like é or ü or Ô in it.

// Error: [driver_exr] defaultArnoldDriver@driver_exr.RGBA: can't create file ".exr": OpenEXR exception: Permission denied. //

// Error: [driver_jpeg] defaultArnoldDriver@driver_jpeg.RGBA: can't create file ".jpg": Unable to open file ".jpg”

// Error: [driver_png] defaultArnoldDriver@driver_png.RGBA: can't create file ".png": Could not open file ".png"

Arnold can’t create the output file, because the special characters mess up the resolution of the output path, which ends up as an empty string.

So with no path provided, the ouput driver tries to write “.jpg” in the current working directory, which is probably something like C:\Program Files\Autodesk\Maya2018.

Use plain text characters for your project folders.



[MtoA] cross-platform volume file names

Posted on by
Reply

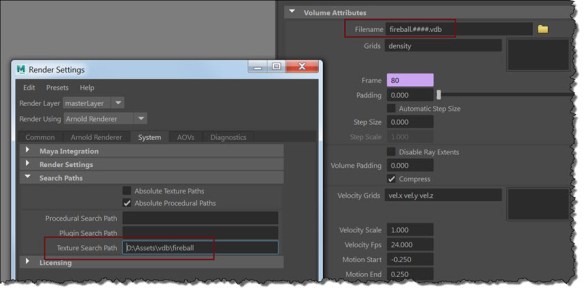

The Arnold volume node uses the texture search path, so you don’t have to use an absolute path in the volume filename.

volume_texture_searchpath

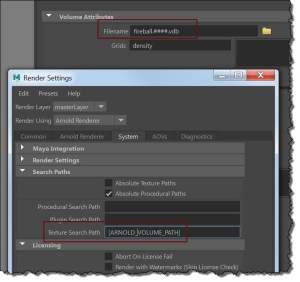

So if you need to set up a Maya scene so that the OpenVDB volumes work on any platform, you could put an environment variable in the Texture Search Path

volume_env_var

Just note that support for volume filenames is still a little … rough. You can’t enter an absolute path in the aiVolume Filename box, then enter a texture search path, and expect MtoA to automatically export a relative path. That still needs to be implemented.

For now, here’s what to do:

  • When you first create the volume, load the vdb file and leave the full absolute path in the aiVolume Filename box.
  • Select the grids and set the other volume parameters.
  • Then set the texture search path and strip off the path from the volume file name (leaving just the file name).
  • Now the environment variable will control where Arnold looks for the vdb file.

The Arnold volume node also support environment variables, so you could do this:

volume_env_var_in_filename

But again, once you put the environment variable into the Filename, the path won’t be resolved inside Maya (but it will work when you render).

Tracking down the “error initialzing CLM (9)”

Posted on by
Reply

It’s not rocket science, but here’s a little application of the scientific method to technical support.

Observation

The Autodesk licensing system loads AdlmIntRes.xml

I used dtruss on macOS and Process Monitor on Windows to see what files are accessed by the licensing system. (On Linux, I would use strace)

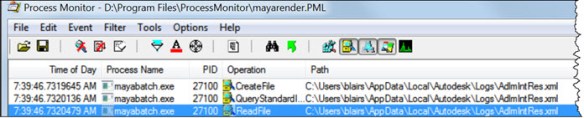

On Windows, the file %LOCALAPPDATA%\Autodesk\Logs\AdlmIntRes.xml is loaded.

procmon_adlmintres

On macOS: $TMPVAR/AdlmIntRes.xml:

56944/0x16208b8:  stat64("/var/folders/vb/1d7zhsx97q7_ddz43nccbyj00000gn/T//AdlmIntRes.xml\0", 0x7FFF55D22F00, 0x0) = 0 0
56944/0x16208b8:  stat64("/var/folders/vb/1d7zhsx97q7_ddz43nccbyj00000gn/T//AdlmIntRes.xml\0", 0x7FFF55D22F30, 0x0) = 0 0
56944/0x16208b8:  open_nocancel("/var/folders/vb/1d7zhsx97q7_ddz43nccbyj00000gn/T//AdlmIntRes.xml\0", 0x0, 0x1B6) = 37 0

On Linux: /var/tmp/AdlmIntRes.xml

Hypothesis

Autodesk licensing will fail if there’s a problem with AdlmIntRes.xml

Testing

  • Delete AdlmIntRes.xml
    No problem. The file is recreated
  • Delete the contents of AdlmIntRes.xml and save the file.
    License authorization fails with the error [clm] error initialzing CLM (9)

compiled against non-compatible Arnold

Posted on by
Reply

If you see something like this:

[Arnold]: MAXtoA_Shaders.dll was compiled against non-compatible Arnold 5.0.2.1

it usually means you have an older Arnold trying to load something compiled with  a newer Arnold. There’s two common reasons for this happening:

  • The system PATH includes the location of the older Arnold, so the older Arnold is loaded instead of the Arnold version included with the plugin.
  • The plugin install is messed up, and has the wrong Arnold version in it.



[mtoa] Register failed for arnoldAOVChildSelector

Posted on by
Reply

If you see this error in the script editor

# Error: Register failed for arnoldAOVChildSelector #

that means your preferred render layer setup is Legacy Render Layers (so MtoA fails to register something that’s used for the new Render Setup).

If you’re not using Render Setup, then you can safely ignore this error.
