How to check what mip levels are used

Posted on by
Reply

You can use the Arnold log to check what mip levels are used. In the Image file statistics, there’ll be a MIP-COUNT for every texture

00:00:02 124MB | Image file statistics:
00:00:02 124MB |       opens tiles MB read --redundant-- I/O time res             File
00:00:02 124MB |     1   1   538   12.6                  2.2s     8192x8192x3.f16 debug.tx MIP-COUNT[0,13,314,147,40,15,4,1,1,1,1,0,0,1]
00:00:02 124MB |

For example, with my debug texture, I see

MIP-COUNT[0,13,314,147,40,15,4,1,1,1,1,0,0,1]

in the Arnold log for this render:



Using oiiotool and maketx to create a mipmap debug texture

Posted on by
Reply

To visualize the different mipmap levels, you can create a custom tx file with different textures for each mipmap level. It’s pretty easy to do with maketx. (or you can download this one)

First, to create the different mipmap levels, I use oiiotool (I use the one shipped with HtoA).

oiiotool --pattern checker:width=32:height=32:color1=1,0,1 8192x8192 3 -o 8192.tif
oiiotool --pattern checker:width=32:height=32:color1=1,0,1 8192x8192 3 -o 8192.tif
oiiotool --pattern checker:width=32:height=32:color1=1,0,0 4096x4096 3 -o 4096.tif
oiiotool --pattern checker:width=32:height=32:color1=1,.25,0 2048x2048 3 -o 2048.tif
oiiotool --pattern checker:width=32:height=32:color1=0,0,1 1024x1024 3 -o 1024.tif
oiiotool --pattern constant:color=1,1,0 512x512 3 -o 512.tif
oiiotool --pattern constant:color=0,1,1 256x256 3 -o 256.tif
oiiotool --pattern constant:color=.5,0,0 128x128 3 -o 128.tif
oiiotool --pattern constant:color=.5,.5,0 64x64 3 -o 64.tif
oiiotool --pattern constant:color=0,1,0 32x32 3 -o 32.tif
oiiotool --pattern constant:color=.5,0,.5 16x16 3 -o 16.tif
oiiotool --pattern constant:color=.82,.41,.12 8x8 3 -o 8.tif
oiiotool --pattern constant:color=0,.5,.5 4x4 3 -o 4.tif
oiiotool --pattern constant:color=0,.75,1 2x2 3 -o 2.tif
oiiotool --pattern constant:color=.5,.5,.5 1x1 3 -o 1.tif

You can’t use constant colors for all the levels, because OIIO will optimize your texture into a constant color and there won’t be any texture access.

Then I use the -mipimage flag to combine all the mipmap levels into a tx file:

maketx 8192.tif ^
-mipimage 4096.tif ^
-mipimage 2048.tif ^
-mipimage 1024.tif ^
-mipimage 512.tif ^
-mipimage 256.tif ^
-mipimage 128.tif ^
-mipimage 64.tif ^
-mipimage 32.tif ^
-mipimage 16.tif ^
-mipimage 8.tif ^
-mipimage 4.tif ^
-mipimage 2.tif ^
-mipimage 1.tif ^
-format exr -d half -o debug.tx

Here’s a couple of examples of using mip-map bias with the debug tx file.

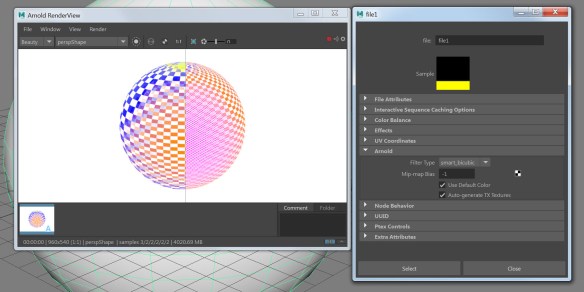

Mip-map Bias = -1 (read a higher resolution mipmap)

mipmap-bias-1

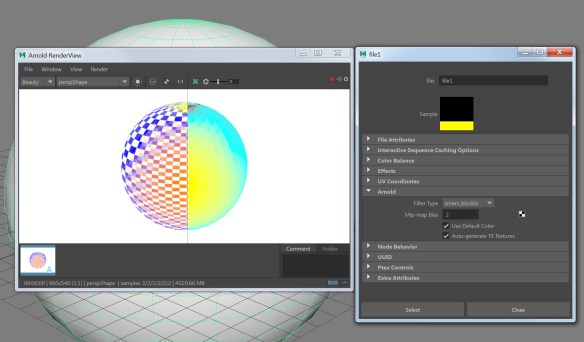

Mip-map Bias = 2 (read two-levels lower resolution mipmap)

mipmap-bias
