SItoA is open-sourced


First, here’s some Arnold renders of a few old-time Softimage models:

And now, here’s the announcement:

Softimage to Arnold (or SItoA), the Arnold plugin for Autodesk Softimage is being made available to the community under an Apache2.0 open source license at:

https://github.com/Autodesk/sitoa

This repository contains the official SItoA plugin source code. Solid Angle, the company behind the Arnold renderer, and now part of Autodesk, developed the SItoA plugin commercially from 2009 to 2017.

After the Softimage end-of-life announcement in April 2014, Solid Angle committed to continue the development and maintenance of SItoA for at least a year, and then extended this period until July 2017, porting SItoA to the new Arnold 5 API along the way.

Governance


Please submit your issues and pull requests on github, the old Trac server will remain available for a while as read-only but we won’t accept any new users.

We will continue to monitor and review pull requests submitted to this repo on a voluntary basis, but will not release official builds any more.

Acknowledgments

Before it was open-sourced, throughout the years, SItoA has been developed by:

  • Luis Armengol
  • Borja Morales
  • Stefano Jannuzzo

With contributions by:

  • Andreas Bystrom
  • Steven Caron
  • Julien Dubuisson
  • Steffen Dunner
  • Michael Heberlein
  • Paul Hudson
  • Halfdan Ingvarsson
  • Vladimir Jankijevic
  • Alan Jones
  • Guillaume Laforge
  • Thomas Mansencal
  • Helge Mathee
  • Eric Mootz
  • Holger Schoenberger
  • Frederic Servant
  • Jules Stevenson

Special thanks to all the users who passionately provided feedback, production assets, bug reports and suggested features during those years.

[mtoa] Register failed for arnoldAOVChildSelector


If you see this error in the script editor

# Error: Register failed for arnoldAOVChildSelector #

that means your preferred render layer setup is Legacy Render Layers (so MtoA fails to register something that’s used for the new Render Setup).

If you’re not using Render Setup, then you can safely ignore this error.



Arnold light_groups and shadow_groups


Light linking in Maya, include/exclude objects for lights in CINEMA 4D, light masks in Houdini, inclusive/exclusive lights in Softimage, they all are translated to light_groups and shadow_groups in Arnold.

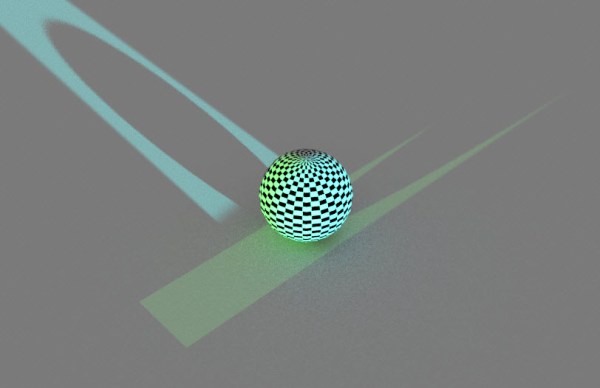

Here’s a sphere on a plane, with two area lights (cyan and green).

default

If we add a light_group to the sphere polymesh:

 use_light_group on
 light_group "CyanAreaLight"

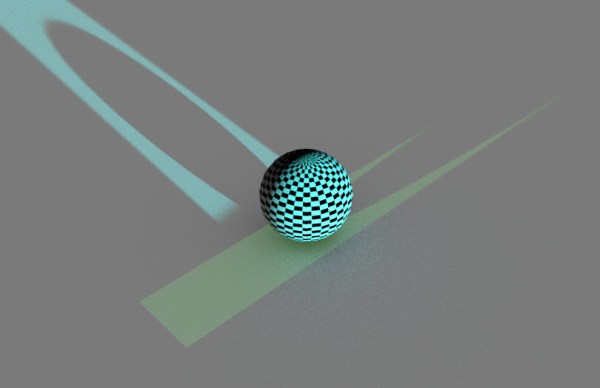

then we get this (see below). The sphere is lit only by the cyan area light: the light_group is the lights that affect the object.

light_group_on_cyan
Note that the sphere still casts shadows from the green light, even the sphere isn’t lit by the green light. That’s because there’s no shadow_group, so all lights cast shadows from the object.

If we add a shadow group, so that the light_group and shadow_group are both “CyanAreaLight”, then the sphere is lit by the cyan light only, and casts shadows from the cyan light only.

use_light_group on
 light_group "CyanAreaLight"
use_shadow_group on
 shadow_group "CyanAreaLight"

light_shadow_groups_on_cyan

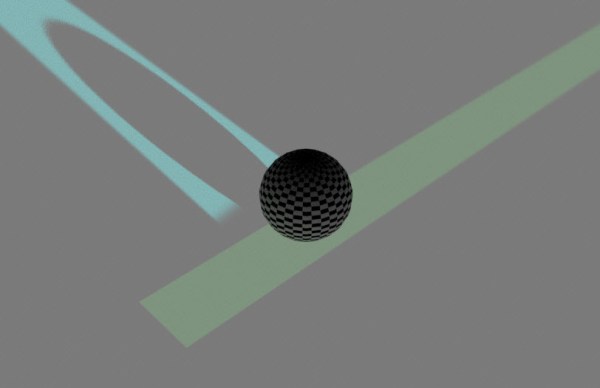

And finally, here’s the sphere when light groups are on, but there’s no lights in the light group:

use_light_group on
use_shadow_group on
 shadow_group "CyanAreaLight"

light_group_empty

[clm] product key not found (44)


The Problem

To use Autodesk licenses for Arnold when you batch render with Maya, Arnold must be registered in the Product Information file (aka the PIT file).

Normally the MtoA installer does this for you. But if you’re running Maya and MtoA from a network install, then Arnold won’t be registered in the PIT file, and you’ll see this in the Arnold log:

00:00:00 381MB WARNING | rendering with watermarks because of failed authorization:
00:00:00 381MB | [rlm] error initializing license system:
00:00:00 381MB | [rlm] * Can't read license data (-102)
00:00:00 381MB | [clm] product key not found (44)

and you’d see something like this in the Adlm.log:

337296 2017/11/03 12:29:54 Reason=Fatal error
337296 2017/11/03 12:29:54 ComputerName=WORKSTATION
337296 2017/11/03 12:29:54 OS=6.1.7601.Service Pack 1
337296 2017/11/03 12:29:54 File=AdlmIntLicense.cpp,Line=594
337296 2017/11/03 12:29:54 VendorID=6 [ADLMPIT]
337296 2017/11/03 12:29:54 VendorError=12 [The root information in Product Information Table XML file is missing]
337296 2017/11/03 12:29:54 Reason=Fatal error
337296 2017/11/03 12:29:54 ComputerName=WORKSTATION
337296 2017/11/03 12:29:54 OS=6.1.7601.Service Pack 1
337296 2017/11/03 12:29:54 File=AdlmIntLicense.cpp,Line=595
337296 2017/11/03 12:29:54 AdlmIntError=25 [The product key was not found]

Solution

MtoA includes pit/pitreg for registering Arnold in the PIT file, so you just need to run pitreg on the local machine, like this:

C:\solidangle\mtoadeploy\2017\pit\pitreg.exe
Succesfully added Arnold information to PIT file

Don’t do this:

cd C:\solidangle\mtoadeploy\2017\pit\
pitreg.exe

because you’ll get this error:

Failed to add Arnold information to PIT file (Error 26)



Setting up Arnold render nodes


I’ve seen several variations of this question recently. Usually there’s some confusion about “Arnold standalone” and what’s actually required on a render node.

If you rendering scene files from Maya, or 3ds Max, or some other 3d application, then you do not need Arnold standalone.

You need the 3d application (Maya, 3ds Max) and the Arnold plugin for that application (MtoA, MAXtoA).

For example, let’s suppose you want to render Maya scene files.

  • You need to install Maya and MtoA on each render node.
  • You don’t need Maya licenses for batch rendering, and you don’t need licenses to install Maya on render nodes.
  • You need Arnold licenses, which are a separate purchase. MtoA is free and unlicensed. Arnold, however, does require a license to render without the watermark. You need one Arnold license for each render node (for you CINEMA 4D users, a TeamRender client is an Arnold render node and requires its own license).
  • You need an Autodesk network license server running somewhere (not on a render node).
  • You need to connect Arnold to the Autodesk network license manager, and you do that by setting ADSKFLEX_LICENSE_FILE.

It’s the same thing for 3ds Max and MAXtoA.

[MtoA] Using standins with MASH dynamics


mash_dynamics_w_standin

Here’s a way to use standins with MASH dynamics: instance a low-poly mesh that has its Arnold Translator set to procedural.

  • Use a low-poly primitive as a proxy for the standin
  • In the low-poly primitive Attribute Editor, set Arnold Translator to procedural, and enter the path to the ASS file in the Path box.

arnold_translator_procedural

  • Instance that proxy object with MASH, and apply MASH dynamics

[MtoA] Unable to dynamically load : mtoa.mll The specified module could not be found.


I have another, more general, version of this post here. This one is for new Arnold users with Maya 2017.

Here’s what to do if you get errors like this:

// Error: file: C:/Program Files/Autodesk/Maya2017/scripts/startup/autoLoadPlugin.mel line 32: Unable to dynamically load : C:/solidangle/mtoadeploy/2017/plug-ins/mtoa.mll
The specified module could not be found.
//
// Error: file: C:/Program Files/Autodesk/Maya2017/scripts/startup/autoLoadPlugin.mel line 32: The specified module could not be found.

Check if your processor supports SSE4.1

As of Arnold 4.2.16.2, the SSE requirement is now SSE4.1

If this is the first time you’ve tried to use the Maya to Arnold (MtoA) plugin, then check whether your processor supports SSE4.1.

Reinstall MtoA

If MtoA used to load, but now it doesn’t, then something happened to the MtoA installation. I’ve seen several cases where DLLs were missing from the MtoA bin folder; most importantly, Arnold itself was missing (Arnold is ai.dll on Windows, or libai.so on Linux, or libai.dylib on OSX).

If you make a backup copy of the MtoA install folder, we can investigate after you fix things by installing MtoA.

Get a Process Monitor log

If a clean install of MtoA doesn’t work (and the computer does support SSE4.1), then “The specified module could not be found.” usually means there’s a missing dependency. Dependency Walker is a decent, if aging, tool for checking out dependencies, but for leaving no stone unturned, I prefer Process Monitor.

The MtoA plugin (mtoa.mll) depends on a handful of files only. Here’s the log of loaded DLLs for a working MtoA:

process_monitor_mtoa

Here’s a quick walkthrough (no audio) of how to get a Process Monitor log:
