ERROR: out-of-range shader index

Posted on by
Reply

If you see this error in your Arnold log, it most likely means that you have more than 256 per-face shaders. Arnold has a hard limit of 256 shaders that can be assigned to a single object.

[polymesh] /pPlane1/pPlaneShape1: out-of-range shader index (5/3)

You may also see this warning if you have a large number of objects merged into one single object (for example, an Alembic archive that consists of many objects). In some cases, an Alembic archive like that may have more than 256 shaders assigned to the sub-objects.

How to check what mip levels are used

Posted on by
Reply

You can use the Arnold log to check what mip levels are used. In the Image file statistics, there’ll be a MIP-COUNT for every texture

00:00:02 124MB | Image file statistics:
00:00:02 124MB |       opens tiles MB read --redundant-- I/O time res             File
00:00:02 124MB |     1   1   538   12.6                  2.2s     8192x8192x3.f16 debug.tx MIP-COUNT[0,13,314,147,40,15,4,1,1,1,1,0,0,1]
00:00:02 124MB |

For example, with my debug texture, I see

MIP-COUNT[0,13,314,147,40,15,4,1,1,1,1,0,0,1]

in the Arnold log for this render:



The case of the 15% rendering utilization

Posted on by
Reply

Or, “Understanding the Arnold log, part 23”

In this case, a client had very low (15%) CPU usage for a render. We got the Arnold log, and here’s the interesting part:

00:01:44  856MB   | OpenImageIO ImageCache statistics (0000000025850F20) ver 1.5.24
00:01:44  856MB   |   Images : 3 unique
00:01:44  856MB   |     ImageInputs : 299 created, 2 current, 3 peak
00:01:44  856MB   |     Total size of all images referenced : 192.4 MB
00:01:44  856MB   |     Read from disk : 12.0 GB
00:01:44  856MB   |     File I/O time : 45m 41.5s (48.1s average per thread)
00:01:44  856MB   |     File open time only : 0.0s
00:01:44  856MB   |   Tiles: 711523 created, 559 current, 640 peak
00:01:44  856MB   |     total tile requests : 249379431
00:01:44  856MB   |     micro-cache misses : 3353694 (1.34482%)
00:01:44  856MB   |     main cache misses : 711523 (0.285317%)
00:01:44  856MB   |     Peak cache memory : 10.0 MB
00:01:44  856MB   |   1 not tiled, 1 not MIP-mapped
00:01:44  856MB   | -----------------------------------------------------------------------------------
00:01:44  856MB   | performance warnings:
00:01:44  856MB   | Rendering utilization was only 15%. Your render may be bound by a single threaded process or I/O.
00:01:44  856MB   | -----------------------------------------------------------------------------------
  • File I/O time seems a bit high for three textures and a render that took less than 2 minutes
  • main cache* misses is pretty high. Normally you expect something less than 0.01%.

    0.285% means that texture tiles are loaded from disk (instead of from the in-memory texture cache) once out of every 350 texture lookups. That’s a little high.

    * The main cache is the cache of 64×64 texture tiles loaded from disk into the texture cache.

  • Peak cache memory is 10.0 MB !!! That explains the main cache misses: the texture cache is really, really small.

Other clues to the too-small texture cache size:

  • Read from disk is 12 GB but the total size of all images referenced is just 192.4 MB, and the peak cache memory was just 10.0 MB
    So the same texture data is constantly being unloaded from the cache and reloaded from disk.

The solution? Increase the size of the texture cache. The current default is 2048, which should be good in most cases.

[MtoA] Getting an Arnold log

Posted on by
Reply

The Arnold log is important, not just for troubleshooting and getting help from us at Solid Angle, but also for understanding what’s going on when Arnold renders your scene.

To get an Arnold log:

  1. In Maya, click Render > Render Settings
  2. In the Render Using list, click Arnold Renderer
  3. Click the Diagnostics tab.

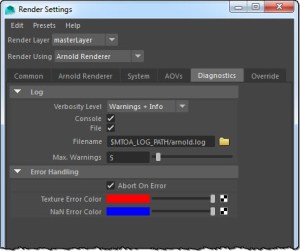

    mtoa_render_settings_diagnostics
  4. Set the Verbosity level to at least Warnings + Info
  5. Click the File check box to enable file logging (by default, the log file will be saved in the last folder you browsed to with  Maya; see Finding your log file).
  6. If you want to be absolutely sure of where to find the log file, click the folder icon beside the Filename box, and select a location for the Arnold log file.
  7. Depending on what OS you use, and how you started Maya, the log is also output to the Output Window (Windows) or to the terminal (on OSX and Linux if you started Maya from a terminal)

For batch rendering, Arnold log messages go into mayaRenderLog.

  • [Windows] %USERPROFILE%\Documents\maya\mayaRenderLog.txt
  • [OSX] ~/Library/Logs/Maya/mayaRender.log
  • [Linux] ~/maya/mayaRenderLog.txt
