Arnold light_groups and shadow_groups


Light linking in Maya, include/exclude objects for lights in CINEMA 4D, light masks in Houdini, inclusive/exclusive lights in Softimage, they all are translated to light_groups and shadow_groups in Arnold.

Here’s a sphere on a plane, with two area lights (cyan and green).

default

If we add a light_group to the sphere polymesh:

 use_light_group on
 light_group "CyanAreaLight"

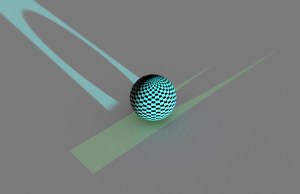

then we get this (see below). The sphere is lit only by the cyan area light: the light_group is the lights that affect the object.

light_group_on_cyan
Note that the sphere still casts shadows from the green light, even the sphere isn’t lit by the green light. That’s because there’s no shadow_group, so all lights cast shadows from the object.

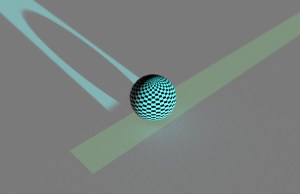

If we add a shadow group, so that the light_group and shadow_group are both “CyanAreaLight”, then the sphere is lit by the cyan light only, and casts shadows from the cyan light only.

use_light_group on
 light_group "CyanAreaLight"
use_shadow_group on
 shadow_group "CyanAreaLight"

light_shadow_groups_on_cyan

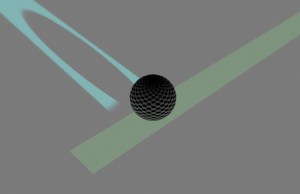

And finally, here’s the sphere when light groups are on, but there’s no lights in the light group:

use_light_group on
use_shadow_group on
 shadow_group "CyanAreaLight"

light_group_empty

[MtoA] Instancing lights


If you want to instance lights in Maya, use Duplicate Special. MtoA will correctly translate those instances to Arnold (as copies, not instances, because Arnold itself doesn’t support light instances).

MtoA doesn’t support the particle instancer for lights.

PS I don’t think Maya supports instancing lights with the particle instancer. The Maya docs say “Do not instance lights; they’ll have no effect in rendering.”, and that’s the behavior I’ve observed with mental ray and the Maya Software renderer. Also, if I leave the viewport set to Viewport 2.0, Maya crashes when I try to use the particle instancer with point or spot lights (and that’s without MtoA loaded).

Using gobos instead of IES lighting profiles


Arnold 4.0.16 added photometric lights, which can use IES light profiles.

Arnold does not support IES lighting profiles [generally, IES profiles are not used a lot in film/VFX work]. Most of the time, you can do what an IES light does by using an appropriate gobo (aka a slide projector). For example, SHED used gobo lighting in place of IES on their recent IGA Aide Gourmet spot.

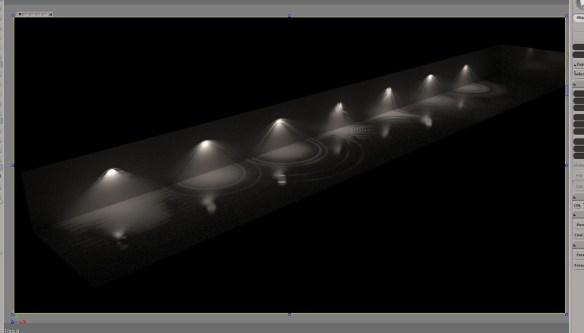

SHED created their own gobo filters to create a similar look to IES lights
