[Arnold] Getting component links to node parameters with the Python API


Let’s say you have something like this:

alRemapFloat
{
 name alRemapFloat1
 input alCombineColor1.r
}

where the R component of the alCombineColor node is linked to the alRemapFloat.input parameter.

To get the component that is linked to input, you use the comp parameter of AiNodeGetLink(), like so:

node = AiNodeLookUpByName( "alRemapFloat1" )
comp = c_int()
linked_node = AiNodeGetLink( node, "input", comp);

Since R is connected, comp will be 0.

comp is -1 if the entire output is linked, or a number between 0 and 3 to indicate a specific component (0 for r, 1 for g, 2 for b, and 3 for a)

Note that you can pass a c_int to AiNodeGetLink(). ctypes takes care of converting it to a byref() for you.

[MtoA] Creating the defaultArnold nodes in scripting


Loading MtoA isn’t enough to create the defaultArnoldRenderOptions node. The defaultArnoldRenderOptions node isn’t created until a user opens the Arnold Render Settings for the first time.

In code, you can do it like this:

from mtoa.core import createOptions
createOptions()

# Set default render options
setAttr( "defaultArnoldRenderOptions.motion_blur_enable", 1 )

When createOptions() creates the defaultArnoldRenderOptions node, it also creates the defaultArnoldDisplayDriver, defaultArnoldDriver, defaultArnoldFilter nodes and hooks them up to the defaultArnoldRenderOptions node.

defaultArnoldRenderOptions

Note that for setting defaults like this, you can also user a userSetup.py file. createOptions() calls hook functions that you can implement in your userSetup.py.

Creating a polymesh with the Arnold Python api


polymesh
Here’s a snippet that shows how to create a simple four-polygon polymesh node with the Arnold Python API.

n = AiNode( "polymesh" )
AiNodeSetStr( n, "name", "grid" )

nsides = [4, 4, 5, 6]
AiNodeSetArray( n, "nsides", AiArrayConvert(len(nsides), 1, AI_TYPE_UINT, (c_uint*len(nsides))(*nsides) ) )

vidxs = [0, 1, 4, 3, 1, 2, 5, 4, 3, 4, 7, 6, 9, 4, 5, 11, 8, 10, 7]
AiNodeSetArray( n, "vidxs", AiArrayConvert(len(vidxs), 1, AI_TYPE_UINT, (c_uint*len(vidxs))(*vidxs) ) )

nidxs = [0, 1, 2, 3, 1, 4, 5, 2, 3, 2, 6, 7, 8, 2, 5, 9, 10, 11, 6]
AiNodeSetArray( n, "nidxs", AiArrayConvert(len(nidxs), 1, AI_TYPE_UINT, (c_uint*len(nidxs))(*nidxs) ) )

vlist = [-1, 0, -1, -1, 0, 0, -1, 0, 1, -0.197835326, 0, -0.742445886, 0, 0, 0, 0, 0, 1, 0.802164674, 0, -0.742445886, 1, 0, 0, 1, 0, 1, 0.270379633, 0, -1.21302056, 1, 0, 0.508926511, 0.496316135, 0, 1]
AiNodeSetArray( n, "vlist", AiArrayConvert(len(vlist), 1, AI_TYPE_FLOAT, (c_float*len(vlist))(*vlist) ) )

nlist = [0, 1, 0, 0, 1, 0, 0, 1, 0, 0, 1, 0, 0, 1, 0, 0, 1, 0, 0, 1, 0, 0, 1, 0, 0, 1, 0, 0, 1, 0, 0, 1, 0, 0, 1, 0]
AiNodeSetArray( n, "nlist", AiArrayConvert(len(nlist), 1, AI_TYPE_FLOAT, (c_float*len(nlist))(*nlist) ) )

m = AtMatrix( 	1, 0, 0, 0,
		0, 1, 0, 0,
		0, 0, 1, 0,
		0, 0, 0, 1 )

am = AiArrayAllocate(1, 1, AI_TYPE_MATRIX)
AiArraySetMtx( am, 0, m )

AiNodeSetArray( n, "matrix", am  )

AiNodeSetBool( n, "smoothing", True )

AiNodeSetByte(n, "visibility", 255 )

# Assign a shader to the polymesh node
u = AiNode( "utility" )
AiNodeSetStr( u, "name", "aiUtility1" )

AiNodeSetPtr( n, "shader", u )

And here’s the resulting node in the ASS file:

polymesh
{
 name grid
 nsides 4 1 UINT
4 4 5 6
 vidxs 19 1 UINT
  0 1 4 3 1 2 5 4 3 4 7 6 9 4 5 11 8 10 7
 nidxs 19 1 UINT
  0 1 2 3 1 4 5 2 3 2 6 7 8 2 5 9 10 11 6
 vlist 12 1 POINT
  -1 0 -1 -1 0 0 -1 0 1 -0.197835326 0 -0.742445886 0 0 0 0 0 1 0.802164674 0 -0.742445886 1 0 0
  1 0 1 0.270379633 0 -1.21302056 1 0 0.508926511 0.496316135 0 1
 nlist 12 1 VECTOR
  0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0 0 1 0
 smoothing on
 visibility 255
 matrix
 1 0 0 0
 0 1 0 0
 0 0 1 0
 0 0 0 1
 shader "aiUtility1"
}

[MtoA] Setting defaults for options and drivers


If you want to set default rendering options, or change the defaults for AOVs, you can use the hook functions provided by mtoadeploy/2015/scripts/mtoa/hooks.py.

hooks.py provides a number of setup functions that MtoA calls during initialization. You can override the default hook functions to do your own custom setup. For example, you could put this Python in your userSetup.py:

import mtoa.hooks

#
# Set some defaults for the defaultArnoldRenderOptions node
#
def setupOptions(options):
    options.AASamples.set(2)
    options.display_gamma.set(1)
    options.light_gamma.set(2.2)
    options.shader_gamma.set(2.2)
    options.texture_gamma.set(2.2)
    options.GITotalDepth.set(6)
mtoa.hooks.setupOptions = setupOptions

#
# Enable Merge AOVs for the defaultArnoldDriver and
# any other drivers created later by the user
#
def setupDriver(driver, aovName=None):
    driver.mergeAOVs.set(1)
mtoa.hooks.setupDriver = setupDriver

The setupOptions() function gets a pymel.PyNode object that holds the defaultArnoldRenderOptions. setupDriver() gets an aiAOVDriver pynode and the name of the AOV as a string.

Here’s a snippet that shows how to work with the pynode for an aiAOVDriver node.

import pymel.core as pm
driver = pm.PyNode('defaultArnoldDriver')

print driver
print driver.aiTranslator.get()
print driver.mergeAOVs.get()

[Python] Linking nodes


There’s been a few questions recently about nodes that look like this in an ASS file:

MayaPlusMinusAverage3D
{
 name plusMinusAverage2
 operation "sum"
 input3D 2 1 POINT
0 0 0 0 0 0
 input3D[0] file1
 input3D[1] bulge1
}

That’s the ASS representation of this (in Maya):
mayaplusminusaverage3D
On line 6, you have the default values (two POINTs) for input3D. If there was nothing plugged into the input3D, you’d get the points (0,0,0) and (0,0,0).

Here’s an example that shows how to set up the node links for a MayaPlusMinusAverage3D node.

from arnold import *

ass_file = "mayaplusminusaverage.ass"

AiBegin()
AiMsgSetConsoleFlags(AI_LOG_ALL)

# Load the mtoa shaders, which include MayaPlusMinusAverage3D
AiLoadPlugins('C:/solidangle/mtoadeploy/2015/shaders')

AiASSLoad(ass_file, AI_NODE_ALL)

# Create a MayaPlusMinusAverage3D node
n = AiNode( "MayaPlusMinusAverage3D" )

# Set the name parameter
AiNodeSetStr( n, "name", "plusMinusAverage2" )

# Set the operation parameter
AiNodeSetStr( n, "operation", "sum" )

# input3D is of type POINT[] (an array of POINTs)

# Allocate an array; by default the array is initialized to 0s
a = AiArrayAllocate( 2, 1, AI_TYPE_POINT )
AiNodeSetArray(n, "input3D", a )

# Link input3D to the file and bulge nodes, which are assumed to already exist
f = AiNodeLookUpByName( "file1" )
b = AiNodeLookUpByName( "bulge1" )
AiNodeLink(f, "input3D[0]", n);
AiNodeLink(b, "input3D[1]", n);

AiASSWrite(ass_file, AI_NODE_ALL, False)
AiEnd()

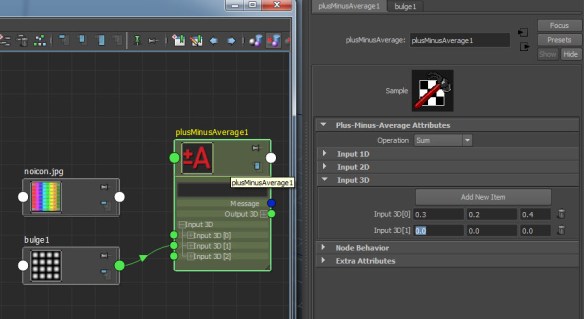

Here’s another example. This time, one input3D is set to (0.3, 0.2, 0.4), and the other input3D is linked to a Bulge node.

MayaPlusMinusAverage3D
{
 name plusMinusAverage3
 operation "sum"
 input3D 2 1 POINT
0.3 0.2 0.4 0 0 0
 input3D[0] file1
}

mayaplusminusaverage3D_1
And here’s the Python snippet that creates the node and sets up the link:

n = AiNode( "MayaPlusMinusAverage3D" )

b = AiNodeLookUpByName( "bulge1" )

AiNodeSetStr( n, "name", "plusMinusAverage3" )
AiNodeSetStr( n, "operation", "sum" )

a = AiArrayAllocate( 2, 1, AI_TYPE_POINT )
AiArraySetPnt(a, 0, AtPoint( 0.3, 0.2, 0.4 ) )

AiNodeSetArray(n, "input3D", a )

AiNodeLink(b, "input3D[1]", n);

A couple of notes:

  • You can get the type of parameters like input3D with kick:
    kick -l ..\shaders -info MayaPlusMinusAverage3
    D
    node:         MayaPlusMinusAverage3D
    type:         shader
    output:       RGB
    parameters:   3
    filename:     ..\shaders/mtoa_shaders.dll
    version:      4.2.3.1

    Type          Name                              Default
    ------------  --------------------------------  --------------------------------

    ENUM          operation                         sum
    POINT[]       input3D                           (empty)
    STRING        name

  • For the full list of parameter types such as AI_TYPE_POINT, see the “AtParamEntry API” in the Arnold API Reference (or python/arnold/ai_params.py in the Arnold install).

[Arnold] Getting started with the Arnold Python API


You can download Arnold here. The Arnold download (aka the Arnold SDK) includes the Arnold library, the Arnold C++ API, the API docs, and the Python bindings for the Arnold API.

To use the Arnold Python API, you need to add the Arnold python folder to the PYTHONPATH:

set PYTHONPATH=C:\solidangle\arnold\Arnold-4.2.4.0-windows\python

Here’s a “hello world” written with the Arnold Python API:

#
# hello_world.py
#
from arnold import *

AiBegin()

AiMsgSetConsoleFlags( AI_LOG_INFO )

AiMsgInfo( 'Hello World' )

AiEnd()

Here’s a quick breakdown of the script.

  • You need to import the arnold module.
  • An Arnold session always starts with AiBegin() and ends with AiEnd(). You have to call AiBegin() to initialize Arnold and enable the Arnold API. Try commenting it out and see what happens…
  • We need to call AiMsgSetConsoleFlags() to set the log verbosity level (otherwise we won’t see our “Hello World”, because the default level is AI_LOG_NONE).
  • AiMsgInfo() sends our “Hello World” to the log.

Assuming that Python in is your PATH, you can run the hello world script like this:

python hello_world.py

and that will give you this output:


C:\solidangle\arnold\scripts>python helloworld.py
        | log started Wed Mar 04 14:31:40 2015
        | Arnold 4.2.4.0 windows icc-14.0.2 oiio-1.4.14 rlm-11.2.2 2015/02/26 15:08:42
        | running on StephenBlair-PC with pid 33812
        |  1 x Intel(R) Xeon(R) CPU E3-1240 V2 @ 3.40GHz (4 cores, 8 logical) with 16338MB
        |  Windows 7 Professional Service Pack 1 (version 6.1, build 7601)
        |
        | Hello World
        |
        | releasing resources
        | Arnold shutdown

For documentation, you use the Arnold SDK documentation. It’s for the C++ API, but the Python API is basically a one-to-one wrapper around the C++ API.

You can find the docs in the doc/api/index.html folder of the Arnold installation.

AiBegin() and AiEnd() are part of the Rendering API.
AiMsgSetConsoleFlags() and AiMsgInfo() are part of the Message Logging API, so go there to check out the possible flags, and what other logging functions are available.
arnold_api_reference

[Arnold] [Python] Iterating over the shape nodes in a scene


Here’s a snippet that loops over the shape nodes in an ASS file.

from arnold import *
AiBegin()

AiMsgSetConsoleFlags(AI_LOG_ALL)

# Required if the ASS file uses any SItoA shaders
AiLoadPlugins('C:/softimage/workgroups/sitoa-3.4.0-2015/Addons/SItoA/Application/Plugins/bin/nt-x86-64')

AiASSLoad('C:/softimage/projects/Support/Arnold_Scenes/Default_Pass_Main.1.ass')

# Iterate over all shape nodes
iter = AiUniverseGetNodeIterator(AI_NODE_SHAPE);
while not AiNodeIteratorFinished(iter):
	node = AiNodeIteratorGetNext(iter)
	print "[script] AiNodeGetName: {0}".format( AiNodeGetName( node ) )

	ne = AiNodeGetNodeEntry( node )
	print "[script]  AiNodeEntryGetName: {0}".format( AiNodeEntryGetName( ne ) )
	print "[script]  AiNodeEntryGetType: {0}".format( AiNodeEntryGetType( ne ) )
	print "[script]  AiNodeEntryGetTypeName: {0}".format( AiNodeEntryGetTypeName( ne ) )

AiNodeIteratorDestroy(iter)
AiEnd()

This would print something like this:

C:\solidangle\scripts>python shapes.py
[script] AiNodeGetName: root
[script]  AiNodeEntryGetName: list_aggregate
[script]  AiNodeEntryGetType: 8
[script]  AiNodeEntryGetTypeName: shape
[script] AiNodeGetName: cube.SItoA.1000
[script]  AiNodeEntryGetName: polymesh
[script]  AiNodeEntryGetType: 8
[script]  AiNodeEntryGetTypeName: shape

Note the root node of type list_aggregate. It’s shape used internally by Arnold. Just be aware that that root node is there in the universe, because even if you load an ASS file that contains just polymesh nodes, there will be a root node that you’ll have to skip over.
