How to get a list of AOVs and LPEs


Here’s a simple kick trick to get a list of AOVs and LPEs.

The -laovs flag lists all the AOVs in the loaded scene, but if you give kick no input, you’ll get a list of all built-in AOVs defined by Arnold.

For example, on Windows, run kick -laovs -i Nul

On Linux or macOS, run kick -laovs -i /dev/null

kick -laovs -i Nul
Available aovs:
    Type:    Name:                        LPE:
    --------------------------------------------------------------
    VECTOR2  motionvector (~)
    RGBA     RGBA                         C.*
    VECTOR   N (~)
    FLOAT    Z (~)
    RGB      direct                       C[DSV]L
    RGB      indirect                     C[DSV][DSVOB].*
    VECTOR   Pref (~)
    RGB      albedo                       C[DSV]A
    RGB      emission                     C[LO]
    RGB      diffuse_direct               C<RD>L
    RGB      background                   CB
    RGB      denoise_albedo               ((C<TD>A)|(CVA)|(C<RD>A))
    RGB      sss_albedo                   C<TD>A
    RGB      specular_albedo              C<RS[^'coat''sheen']>A
    RGB      diffuse                      C<RD>.*
    FLOAT    cputime (~)
    RGB      diffuse_indirect             C<RD>[DSVOB].*
    RGB      sss_indirect                 C<TD>[DSVOB].*
    RGB      diffuse_albedo               C<RD>A
    RGBA     shadow_matte
    FLOAT    volume_Z (~)
    RGB      specular                     C<RS[^'coat''sheen']>.*
    RGB      coat_direct                  C<RS'coat'>L
    RGB      specular_direct              C<RS[^'coat''sheen']>L
    RGB      specular_indirect            C<RS[^'coat''sheen']>[DSVOB].*
    RGB      volume_direct                CVL
    RGB      coat                         C<RS'coat'>.*
    RGB      coat_indirect                C<RS'coat'>[DSVOB].*
    RGB      coat_albedo                  C<RS'coat'>A
    RGB      sheen                        C<RS'sheen'>.*
    RGB      transmission                 C<TS>.*
    RGB      transmission_direct          C<TS>L
    RGB      transmission_indirect        C<TS>[DSVOB].*
    VECTOR2  AA_offset (~)
    RGB      transmission_albedo          C<TS>A
    VECTOR   P (~)
    RGB      sheen_direct                 C<RS'sheen'>L
    RGB      volume                       CV.*
    RGB      sheen_indirect               C<RS'sheen'>[DSVOB].*
    NODE     shader (~)
    RGB      sheen_albedo                 C<RS'sheen'>A
    RGB      sss                          C<TD>.*
    RGB      sss_direct                   C<TD>L
    RGB      volume_indirect              CV[DSVOB].*
    RGB      volume_albedo                CVA
    FLOAT    A (~)
    FLOAT    ZBack (~)
    RGB      opacity (~)
    RGB      volume_opacity (~)
    FLOAT    raycount (~)
    UINT     ID (~)
    NODE     object (~)
    FLOAT    AA_inv_density (~)
    RGBA     RGBA_denoise (~)
    --------------------------------------------------------------
    (~) No opacity blending

Kicking Bifrost ASS


You can export a Bifrost scene to an Arnold ass file and then render it with kick.

Just use the -l flag (or the ARNOLD_PLUGIN_PATH environment variable) to point to the Arnold plugins that comes with the Bifrost install. For example, on Windows:

kick -v 5 -dp bifrost_aeroColors.ass
-l "C:\Program Files\Autodesk\Bifrost\Maya2020\2.2.0.2\bifrost\arnold-6.2.0.0"
kick render of a Bifrost graph

In the Arnold log, we see that Arnold loads the procedural nodes for Bifrost:

00:00:00 88MB | loading plugins from C:\Program Files\Autodesk\Bifrost\Maya2020\2.2.0.2\bifrost\arnold-6.2.0.0 …
00:00:00 100MB | arnold_bifrost.dll: bifrost_graph uses Arnold 6.2.0.0
00:00:00 100MB | arnold_bifrost.dll: bifrost_object uses Arnold 6.2.0.0
00:00:00 100MB | arnold_bifrost.dll: bifrost_multires_volume uses Arnold 6.2.0.0
00:00:00 100MB | arnold_bifrost.dll: bifrost_multires_implicit uses Arnold 6.2.0.0
00:00:00 100MB | arnold_bifrost.dll: bifrost_volume uses Arnold 6.2.0.0
00:00:00 100MB | arnold_bifrost.dll: bifrost_points uses Arnold 6.2.0.0
00:00:00 100MB | arnold_bifrost.dll: bifrost_implicit uses Arnold 6.2.0.0
00:00:00 100MB | arnold_bifrost.dll: bifrost_polymesh uses Arnold 6.2.0.0
00:00:00 100MB | arnold_bifrost.dll: bifrost_blocks uses Arnold 6.2.0.0
00:00:00 100MB | loaded 9 plugins from 1 lib(s) in 0:00.06

In other applications, like CINEMA 4D or Houdini or Katana, you can do the same thing by setting the Plugin Search Path.

kicking ass with debug shading


You can use kick to render with debug shading. Here’s the flags to use:

  • -is to ignore the shaders assigned to the shapes
    When you ignore shaders, a default utility shader is used to render the scene.
  • -sm sets the shade mode ( ndoteye lambert flat ambocc plastic metal)
  • -cm sets the color mode (color ng ns n bary uv u v dpdu dpdv p prims uniformid wire polywire obj edgelength floatgrid reflectline bad_uvs nlights id bumpdiff pixelerror)

Here’s some examples that show how to kick with different types of debug shading (I’ve used the Arnold Render View debug shading modes for these examples)



Debug shading kick flags
Basic: disable all shaders in the scene, switching to a gray ‘ndoteye’ shader; a very fast shading mode.
kick -is

or

kick -is -sm notdoteye
Lighting: renders the scene with a white lambert shader
kick -is -sm lambert
Occlusion: use ambient occlusion shading
kick -is -sm ambocc
Wireframe: displays geometry as a wireframe
 kick -is -cm polywire

or

kick -is -sm ndoteye -cm polywire
Normal: visualizes the normal vector (between 0 and 1, in tangent space)
 kick -is -sm flat -cm n
UV: displays the coordinates of the primary UV set (red=U, green=V)
 kick -is -sm flat -cm uv
Primitive ID: displays random colors based on the per-primitive (triangle, curve) index
 kick -is -sm flat -cm prims
Barycentric: displays intra-primitive parametric coordinates (barycentric for triangles, parametric length, and width for curve segments)
 kick -is -sm flat -cm bary
Object: displays random colors based on the per-object ID
kick -is -sm flat -cm obj

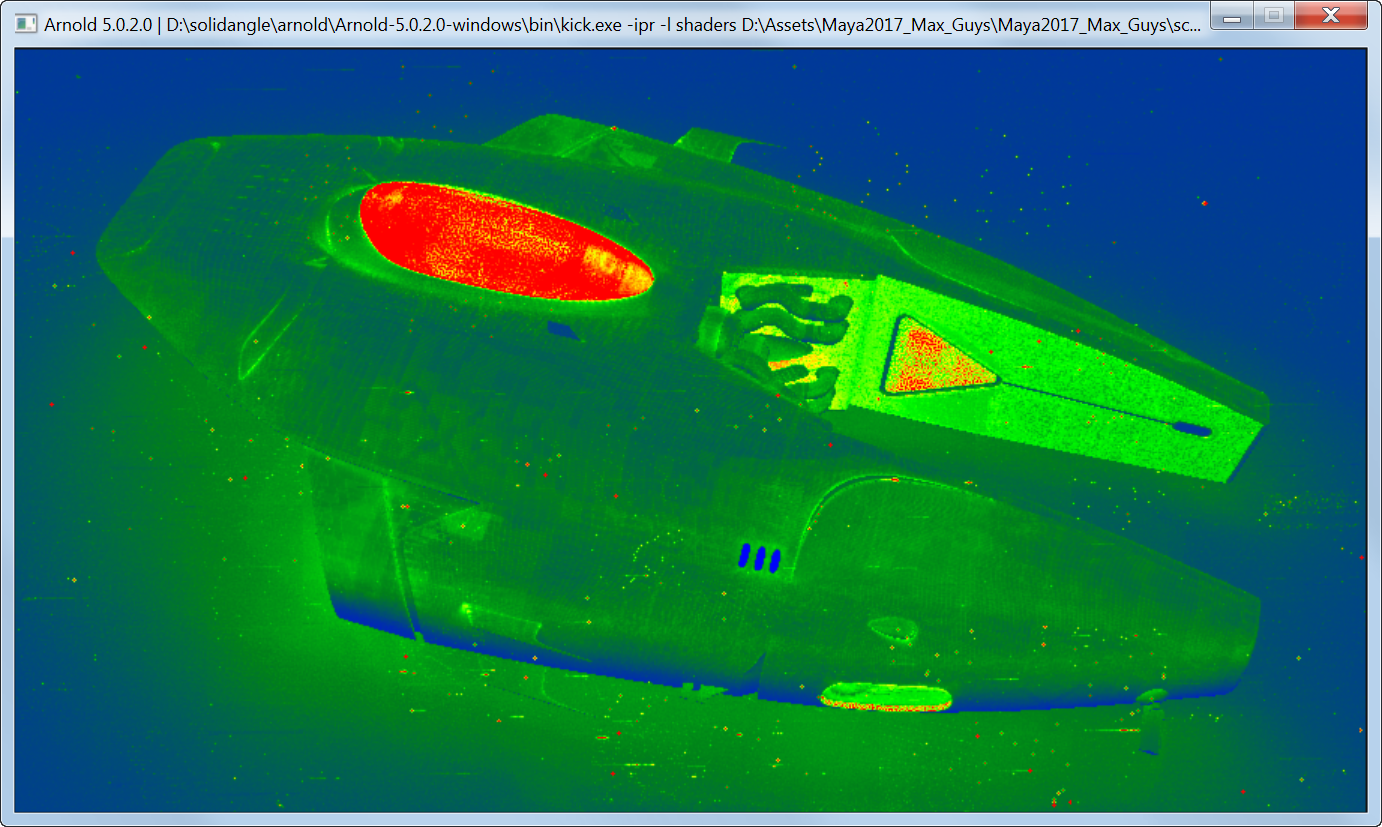

kicking a cputime heat map



New in Arnold 5.0.2! You can press T to get a cputime heat map. From the Arnold release notes:

  • Added cputime heatmap view to kick: When using kick you can now toggle between viewing kicks default output and a cputime heatmap with the T key. The mapping of the heat map can be scaled with the [ and ] keys.

To get the cputime heat map, you have to run kick interactive (eg with the -ipr flag):

kick -ipr example.ass

WARNING | unable to load dynamic library .\ai_renderview.dll: The specified module could not be found.


kick checks the current working directory for plugins (shaders and procedurals). That means kick tries to load all .dll/.so/.dylib files in the current directory.

So if you do this:

cd C:\solidangle\mtoadeploy\2017\bin
kick -nodes

Then you’ll get a warning like this (plus a pop-up System Error dialog that says “Qt5Core.dll is missing from your computer”).

loading plugins from .
WARNING | unable to load dynamic library .\ai_renderview.dll: The specified module could not be found.

On OSX, the warning would  say ./libai_renderview.so, and on Linux, ./libai.so

Notice the “loading plugins from .” The single period, or dot, represents the current directory.

The solution? Don’t run kick in the MtoA bin folder. Don’t run kick in an any folder where there are non-plugin libraries.



[Arnold] [kick] Enabling tiled EXRs


Suppose you have a load of ASS files that were exported with the Tiled option disabled. How could you re-enable the Tiled option without re-exporting the ASS files?

With the kick -set flag, that’s how:

kick -set display_exr.tiled on

That will set the tiled parameter for all EXR driver nodes in the ASS file.

If you want to set the flag for a specific driver node, you need to know the driver node name.

kick -set defaultArnoldDriver@driver_exr.RGBA.tiled on

That sets tiled for the driver_exr node named defaultArnoldDriver@driver_exr.RGBA.

Portable ASS files with relative paths and the Texture Search Path


You can make your ASS files portable across different platforms by using relative paths and the texture search path. For example, if all textures are specified by relative paths like “textures/noicon.tx”, then you just have to set options.texture_searchpath to specify the location of the textures folder.

For example

kick -set options.texture_searchpath //server/project/ -dp -dw example.ass

Or if the texture search path is set to an environment variable

export ARNOLD_TEXTURE_PATH=//server/project
./kick example.ass

To use relative paths for texture file names in nodes like MayaFile, aiImage, aiPhotometricLight, and aiSkydomeLight, you just need to do the following:

  • Put a relative path in the file name box (for example, in Photometry File box of an aiPhotometricLight node, or the Image Name box of an aiImage node)
  • Set the Texture Search Path (Render Settings > System > Search Paths)
  • Clear the Absolute Texture Paths check box

You can put multiple locations, using either : or ; to separate the paths (Arnold supports both separators on all platforms: OSX, Linux, and Windows)

You can use environment variables by putting the environment variable name in square brackets. For example:

"[ARNOLD_TEXTURE_PATH]:C:/Assets/IES/;C:/maya/projects/Support/sourceimages"

Forward slashes work on all platforms.

MtoA appends the current project’s sourceimages folder to the texture search path.

Why can’t I use kick -set options.shader_searchpath ?


You may wonder: why can’t I use kick -set options.shader_searchpath to tell Arnold where to find shaders?

Well, it’s because kick loads the ASS file first, then applies the kick -set parameter overrides. And also, Arnold when loads an ASS file, Arnold automatically loads shaders from the shader_searchpath as soon as Arnold loads the options node.

Here’s the sequence of events:

  1. kick loads all plugins specified by -l or by ARNOLD_PLUGIN_PATH before it loads the ASS file
  2. kick loads the ASS file. When Arnold loads the options node, Arnold automatically loads all plugins specified by options.shader_searchpath.That’s why the options node is at the top of an ASS file: so Arnold can load any required shaders before loading the shader nodes. It you move the options to bottom of the ASS file, the shader nodes in the ASS file won’t be loaded.
  3. Finally, after all the nodes are loaded, the -set parameter overrides are applied. At this point, it’s too late for any shaders from the -set options.shader_searchpath loacation. The corresponding nodes were already discarded during the loading of the ASS file.



WARNING mtoa_shading_groups: unresolved reference


Any time you see “node … is not installed” and “unresolved reference” warnings when you try to kick an ASS file exported from Maya, the problem is missing MtoA shaders.


00:00:00 18MB WARNING | [ass] line 259: node "MayaFile" is not installed
00:00:00 18MB WARNING | [ass] line 288: node "MayaShadingEngine" is not installed

00:00:03 23MB WARNING | [ass] line 238: pSphereShape1.mtoa_shading_groups: unresolved reference to 'aiStandard2SG'
00:00:03 23MB WARNING | [ass] line 137: aiSkyDomeLightShape1.color: unresolved reference to 'file1'
00:00:03 23MB WARNING | [ass] line 188: pPlaneShape1.shader: unresolved reference to 'aiStandard1SG'
00:00:03 23MB WARNING | [ass] line 197: pPlaneShape1.mtoa_shading_groups: unresolved reference to 'aiStandard1SG'
00:00:03 23MB WARNING | [ass] line 229: pSphereShape1.shader: unresolved reference to 'aiStandard2SG'

When you render with kick, you need to specify the location of the MtoA shaders. You can do this several ways:

  • Set the ARNOLD_PLUGIN_PATH environment variable. For example:
    export ARNOLD_PLUGIN_PATH=/home/render/solidangle/mtoa/2016/shaders
    set ARNOLD_PLUGIN_PATH=C:\solidangle\mtoadeploy\2016\shaders
  • Use the kick -l flag to specify the MtoA shader location.
  • In Maya, set the Shader Search Path in the Arnold Render Settings, then export the ASS file.

[Arnold] [kick] Changing output paths for AOVs


The -o flag changes the output path for the beauty AOV only. For other AOVs, kick still uses the output paths specified in the ASS file (the AOV output paths are specified by the filename parameter of the driver nodes in an ASS file).

driver_exr
{
 name defaultArnoldDriver@driver_exr.RGBA.direct_diffuse
 filename "C:/Users/StephenBlair/Documents/maya/projects/Support/images/direct_diffuse/Natural_Museum.exr"
 compression "zip"
 half_precision off
 tiled off
 preserve_layer_name off
 autocrop off
 append off
}

It is possible, however, to use kick -set to change the output path and file name of specific AOVs, but you’d have to know the AOV names in advance. For example:

kick -set defaultArnoldDriver@driver_exr.RGBA.direct_diffuse.filename "C:/temp/direct_diffuse.exr" -i example.ass
